Bundle extractor Kidextractor Mega 45×9

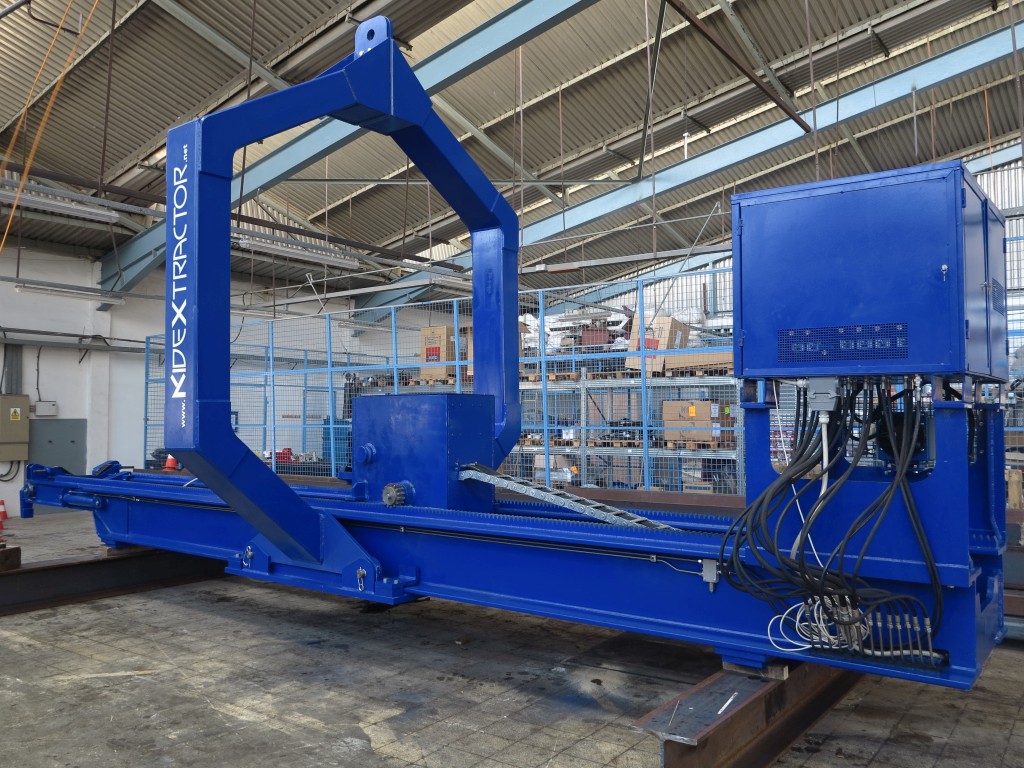

Kidextractor introduces the Bundle extractor Kidextractor Mega 45×9, an aerial tube bundle extractor ideal for heat exchangers with big size tube bundles. Bigger than the bundle puller Maxi Extra 35×8,
Kidextractor Mega 45×9 is able to pull and push tube bundles of up to 10,400 mm of length, 45 tons of weight and 2,500 mm of diameter.
Kidextractor Mega 45×9 is able to pull and push tube bundles of up to 10,400 mm of length, 45 tons of weight and 2,500 mm of diameter.
| Length (without extensions) | 10000 mm |
| Weight of balance arch | 1500 Kg |
| Width of main frame | 1060 mm |
| Weight of machine (without arch) | 7000 Kg |
| Weight of machine (with balance arch) | 8500 Kg |
| Air Cooled Diesel Engine | 33 HP |
| Winch Pulling Force | 62000 Kg |
Technical specifications:
| Extractor |
Bundle | ||
| Length (without extensions) | 10000 mm | Weight (maximum) | 45000 Kg |
| (with back extensions) | 10400 mm | Diameter (maximum) | 2500 mm |
| (with front extensions) | 11000 mm | Length (maximum) | 10400 mm |
| (with front and back extensions) | 11400 mm | ||
| Weight of balance arch | 1500 Kg | ||
| Width of main frame | 1060 mm | ||
| Weight of machine (without arch) | 7000 Kg | ||
| (with arch) | 8500 Kg | ||
| Air Cooled Diesel Engine | 33 HP | ||
| Winch Pulling Force | 62000 Kg | ||
